BREATHE
My Role :
Product Design
Target User Research
Interaction
OVERVIEW
BREATHE
Screen Shot 2020-02-20 at 2.15.49 AM cop

In recent years, the incidence of bronchial asthma have been increasing , becoming a worldwide health problem.

Breathe is an asthma inhaler which can better serve the elderly patients with arthritis.

PROBLEM STATEMENT

Elderly asthma patients are often accompanied by the onset of skeletal diseases such as arthritis, which can lead to joint stiffness, swelling and deformity, intermittent joint pain and pressing pain. And they often have weak hands. At the same time, the deterioration of systemic organs and the slow response due to aging also limit the use of products of elderly patients.

CONTEXT

Asthma is a chronic disease that occurs in people of all ages, characterized by polypnea and repeated outbreak. Currently, about 300 million people have asthma. In 2015, 383,000 people died of this disease, among which the elderly are the majority.

In recent years, the results of epidemiological studies on senile asthma have shown that the number of old people suffering from asthma is increasing year by year. Domestic studies have shown that the incidence of severe asthma in elderly asthma patients is almost two to three times compared to that of non-elderly patients.

Screen Shot 2020-02-13 at 11.09.18 PM.pn

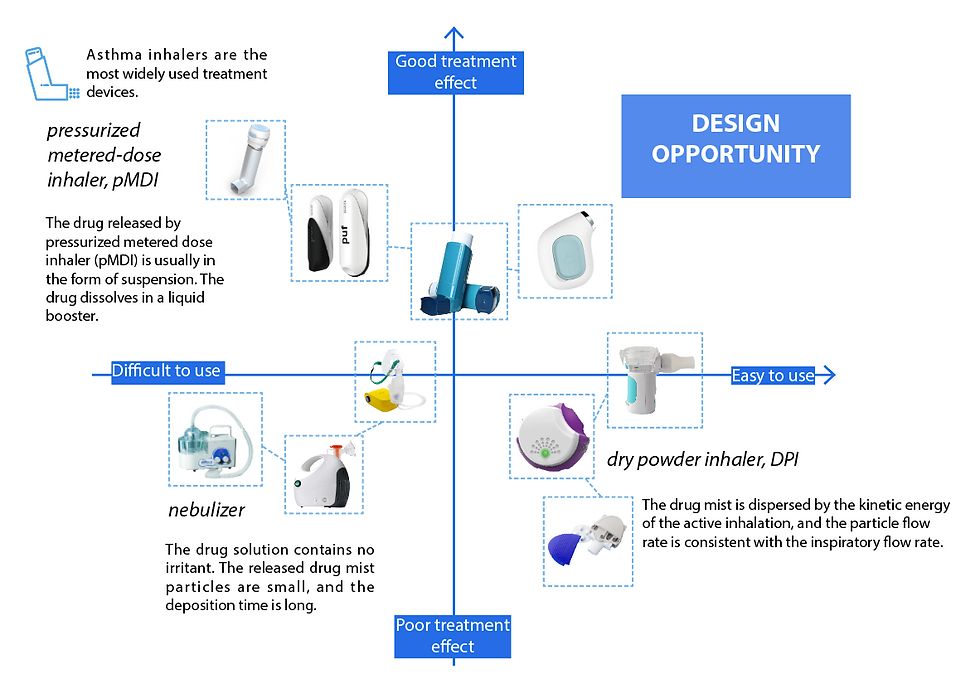

SECONDARY RESEARCH

Study the historical development process of asthma inhalers, analyzing the evolution of products from three dimensions and further understand the product characteristics.

Study the historical development process of asthma inhalers, analyzing the evolution of products from three dimensions and further understand the product characteristics.

Screen Shot 2020-02-13 at 10.08.52 AM.pn

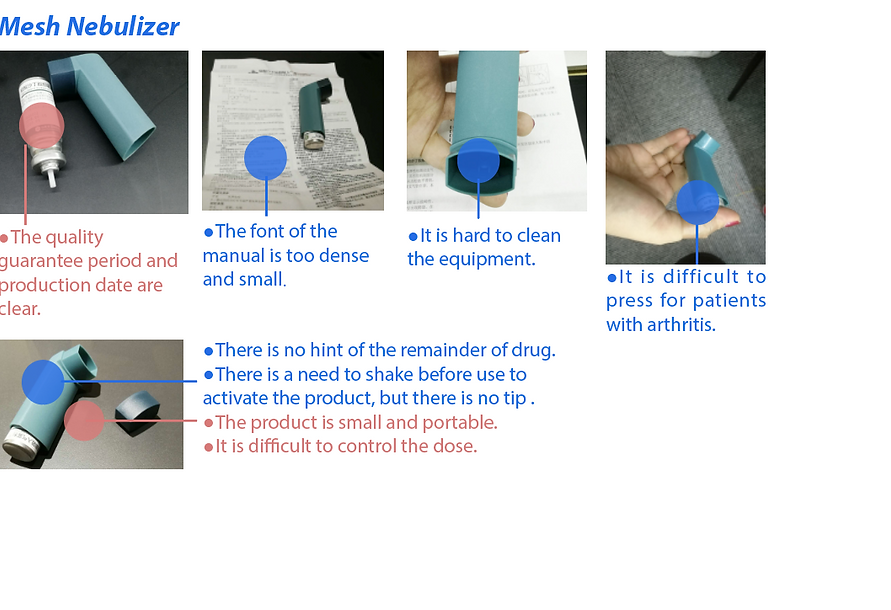

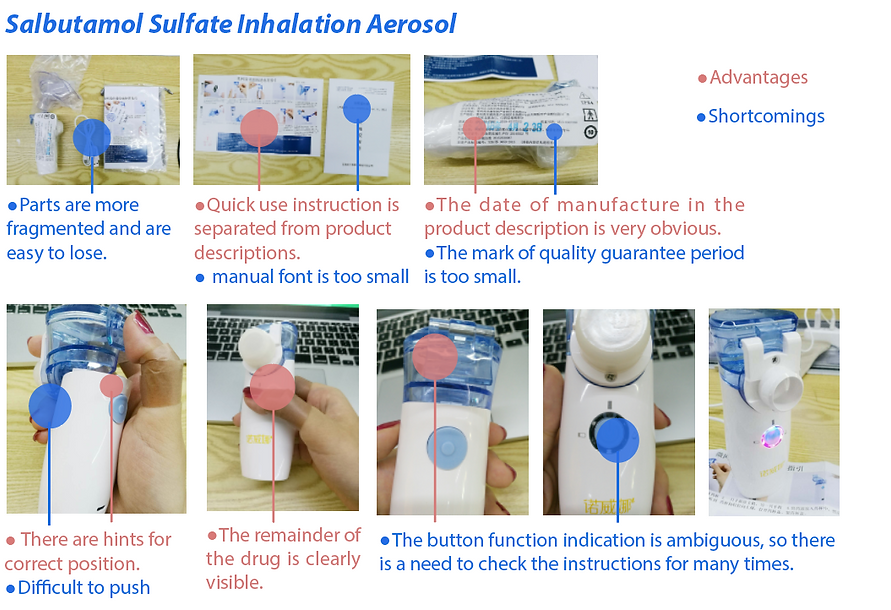

COMPETITOR ANALYSIS

Conduct research on existing products in the market to study the relations between products and target groups and the problems arising from the product service system.

Screen Shot 2020-02-13 at 10.49.49 PM.pn
Screen Shot 2020-02-13 at 10.49.59 PM.pn
PERSONA & JOURNEY MAP
Screen Shot 2020-02-13 at 11.23.38 PM.pn

Older arthritis asthma patients have difficulties in pressing the asthma inhaler. They need a simple and labor-saving method to turn it on and off. The product should be as portable and lightweight as possible to meet travel and home needs. And the functions shall be easy to understand.

SYNTHESIS
OPPORTUNITY
  1. I consider combining sensors and other technologies with asthma inhalation products to achieve more intelligent and humanized effects in way of use.

  2. Simplify the operation steps with focus on the characteristics of older users.

SKETCHES

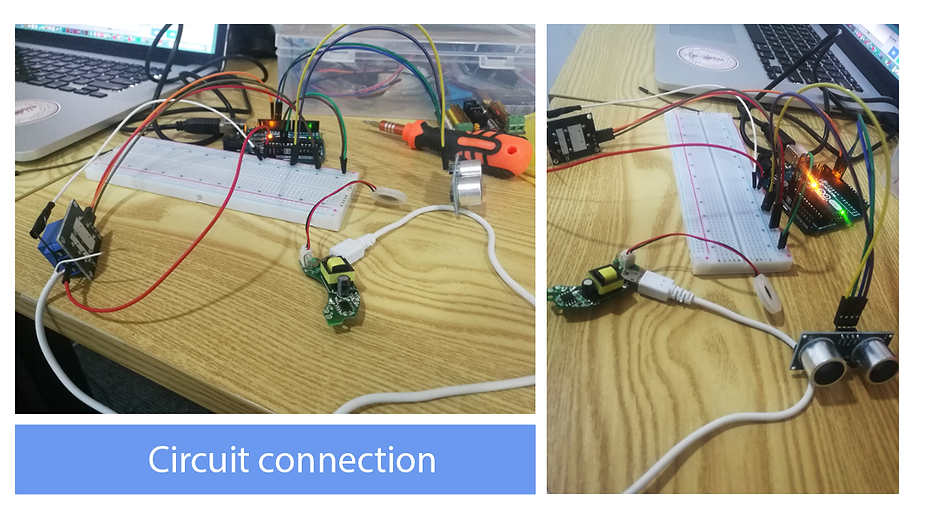

PROTOTYPING
Screen Shot 2020-02-13 at 10.58.05 PM.pn
Screen Shot 2020-02-13 at 10.56.26 PM.pn

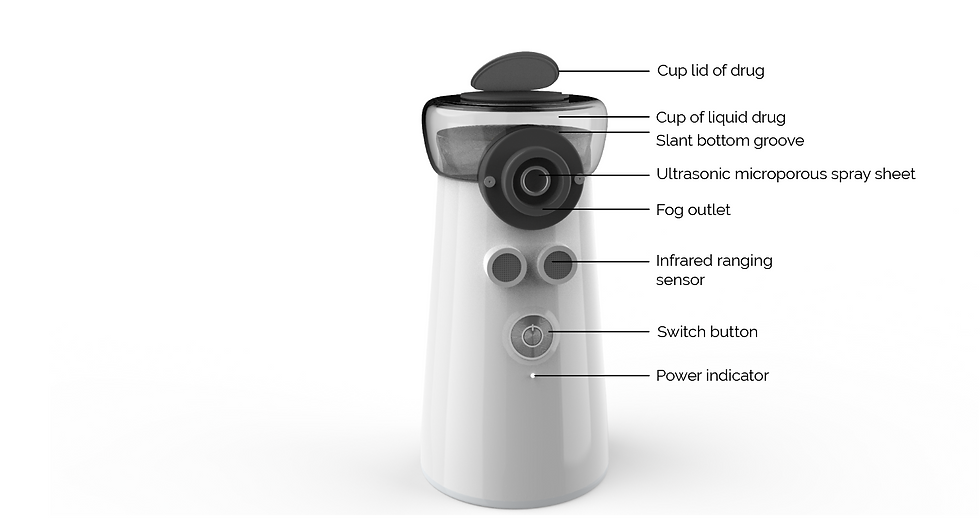

The product can be aware of the location of the elderly in advance through infrared range sensor. When the distance reaches the preset value, the product performs the atomization operation without additional operation, alleviating the pressing difficulty of the elderly patient. At the same time, the simplified buttons and functions will be achieved, in order to make the product easier to be operated.

Screen%20Shot%202020-02-20%20at%202.15_e
Screen%20Shot%202020-02-20%20at%202.15_e
USER FLOW
Screen Shot 2020-02-13 at 10.14.54 AM.pn
59794fe51747 pse.png

Take out the machine

开关 手 PS.png

Turn on the power switch


Pour the liquid

cccc PS.png

Install the mask or the nozzle

Get close to the product and start aerosol treatment

002 PS.png
